Solo Slim Flushing cistern for WC 88.9 mm
Product Number
39696000
EAN
4005176583711
Colour
- cistern volume 6 l
- angle valve ½"
- GROHE Water Saving - Less water, perfect flow
- Shortable inspection shaft incl. protection during construction phase, for vertical use
- for mounting of small flush plates please order revision shaft 40 949 000 (sold separately)
- adjustment ex factory 6l and 3l
- flushing cistern SLIM, 3 - 6 l, containing following features:
- pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
- water supply from top
- optional flow manager please order separately
- for on-the-wall installation please order wall brackets 39 699 000 (sold separately)
- flush pipe insulated against condensation
- DR-brass
- approved for Australia
CAD Data

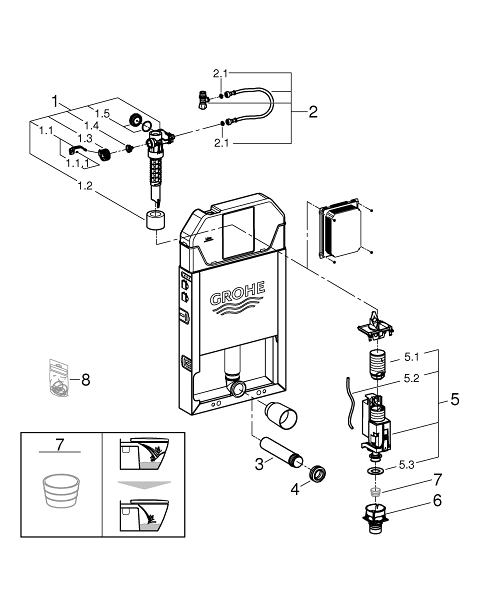

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| Optional accessories | ||
| 1 | Filling valve | 42598000 |
| 1.1 | Lever | 43734000 |
| 1.1.1 | Ball seal dia. 9x6.8 mm | 4377000M |
| 1.2 | Valve float, 5 pcs. | 4379100M |
| 1.3 | Valve head | 43536000 |
| 1.4 | Membrane | 43758000 |
| 1.5 | Screw cap | 43735000 |
| 2 | Angle valve 1/2" | 42607000 |
| 2.1 | Seat washer | 0319100M |
| 3 | Wall union | 43352000 |
| 4 | Connector | 37119000 |
| 5 | Dual Flush discharge valve AV1 | 42320000 |
| 5.1 | Extension for overflow pipe | 42313000 |
| 5.2 | pneumatic hose | 42319000 |
| 5.3 | Ball seal dia. 9x6.8 mm | 42310000 |
| 6 | Valve seat | 42599000 |
| 7 | Flow restrictor | 42300000* |
| 8 | Repl. kit f. seal | 43722000* |
