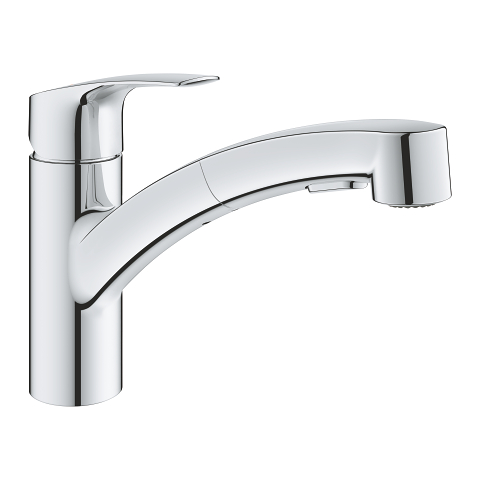

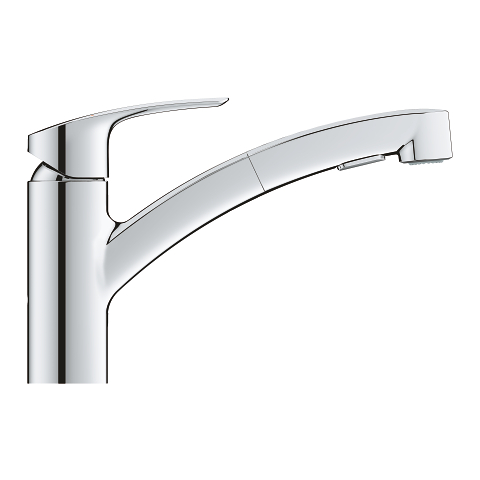

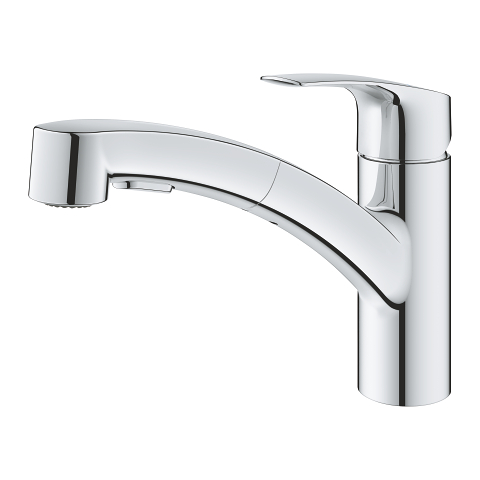

Eurosmart Single-lever sink mixer 1/2″
Product Number
30317001
EAN
4005176635502
Colour
chrome
- low spout
- single hole installation
- GROHE Long-Life finish
- GROHE SilkMove 35 mm ceramic cartridge
- flow strainer
- with integrated temperature limiter
- adjustable flow rate limiter
- swivelling tubular spout
- swivel area 90°
- Lead and Nickel Free Inner Water Ways
- pull-out dual spray - switches back and forth between regular flow and spray
- diverter: laminar spray/SpeedClean shower jet
- automatic return to laminar spray
- flexible connection hoses 3/8"
- metal fixation set
- Protected against backflow
CAD Data

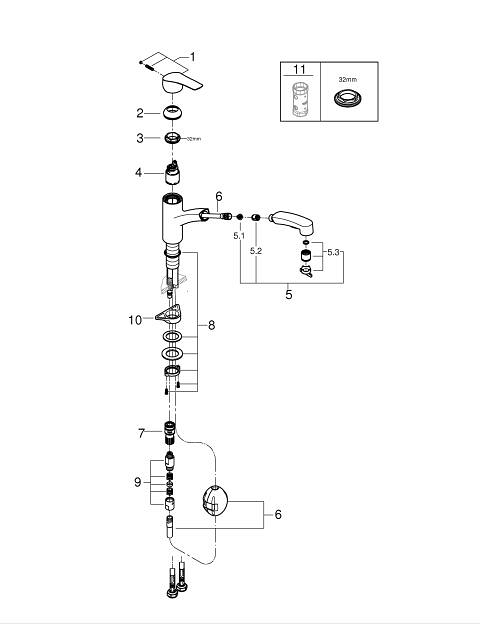

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| Optional accessories | ||
| 1 | Lever | 48530000 |
| 2 | Shield | 46492000 |
| 3 | Screw ring | 46815000 |
| 4 | Cartridge | 46374000 |
| 5 | Hand shower | 46956000 |
| 5.1 | Dirt strainer | 0676800M |
| 5.2 | Non-return valve | 08565000 |
| 5.3 | Flow straightener | 48275000 |
| 6 | Hose for sink mixer with pull-out dual spray or mousseur | 48293000 |
| 7 | Snap coupling | 12365000 |
| 8 | Shank fastening assembly | 48384000 |
| 9 | screw coupling | 46817000 |
| 10 | Support plate | 05334000 |
| 11 | Socket spanner | 19332000* |
